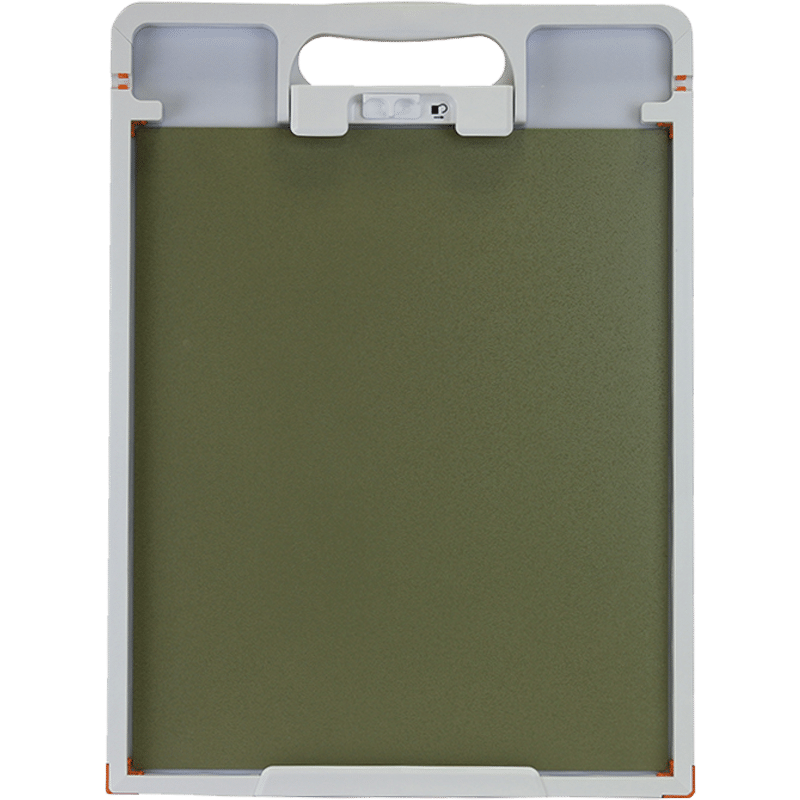

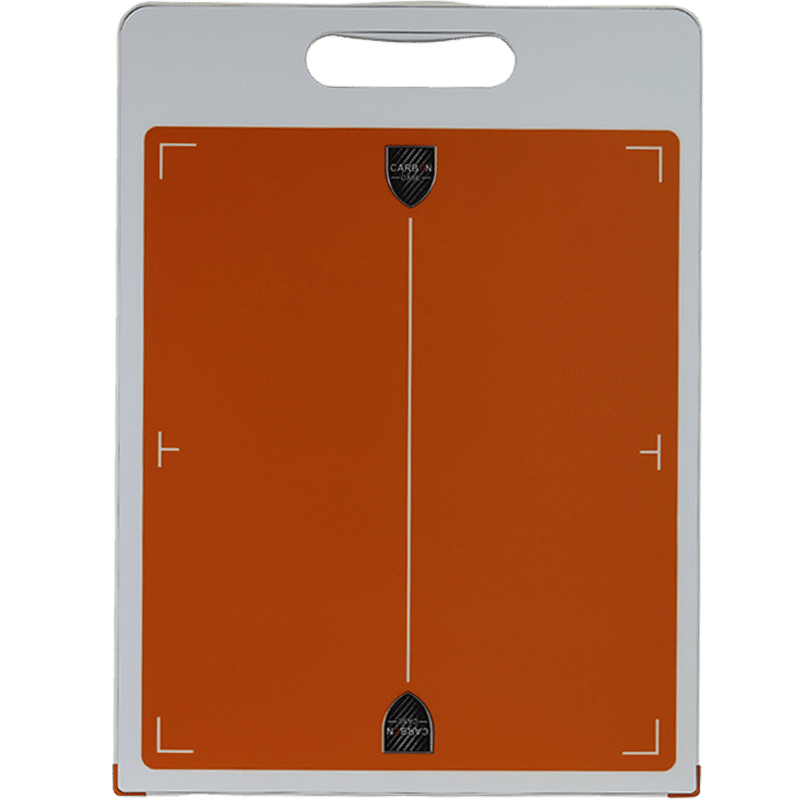

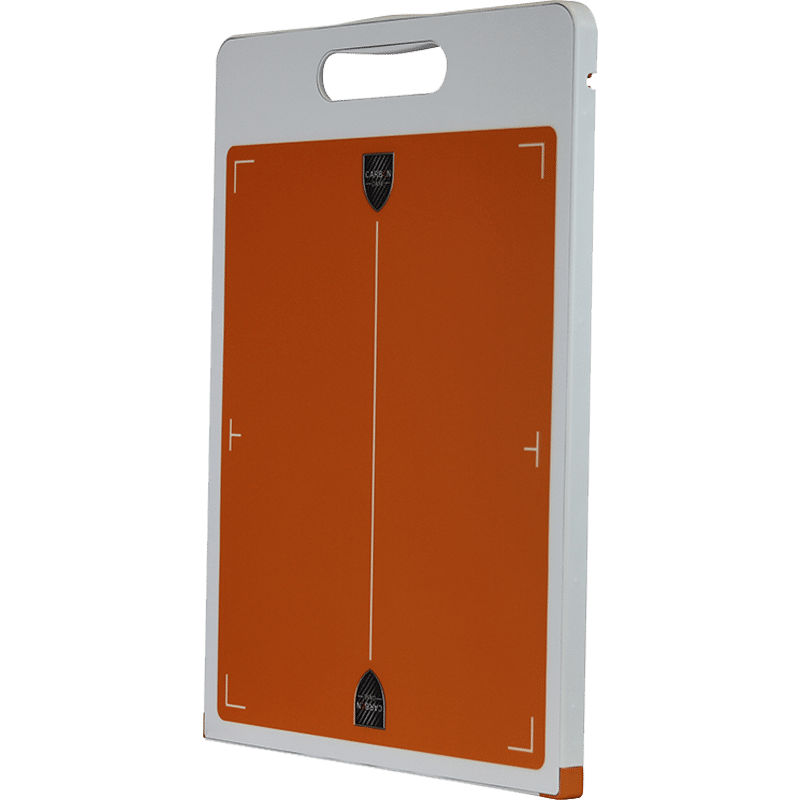

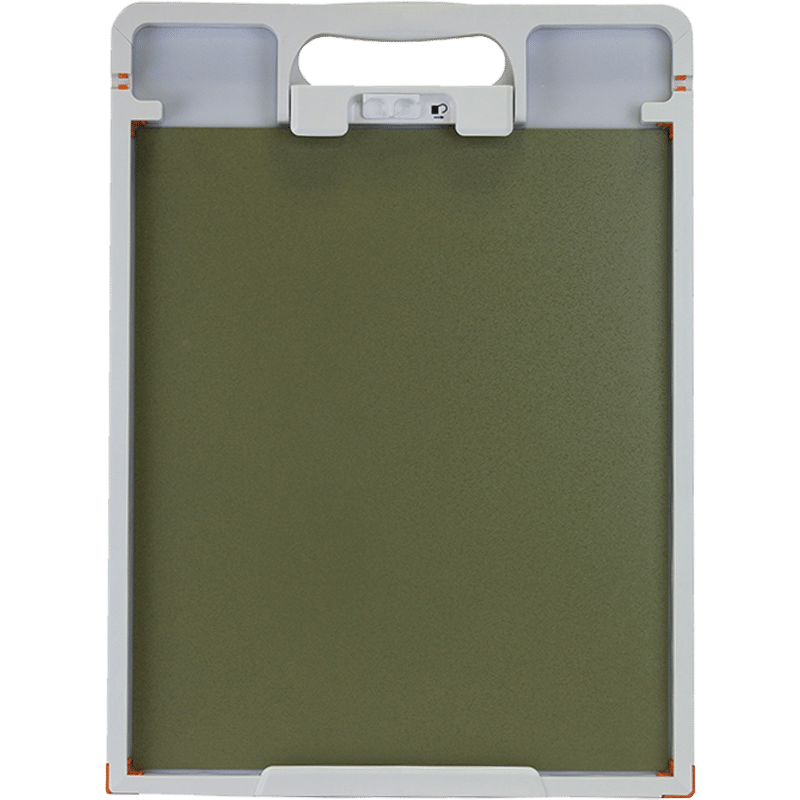

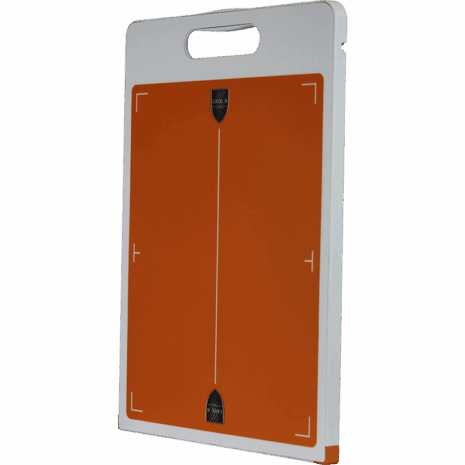

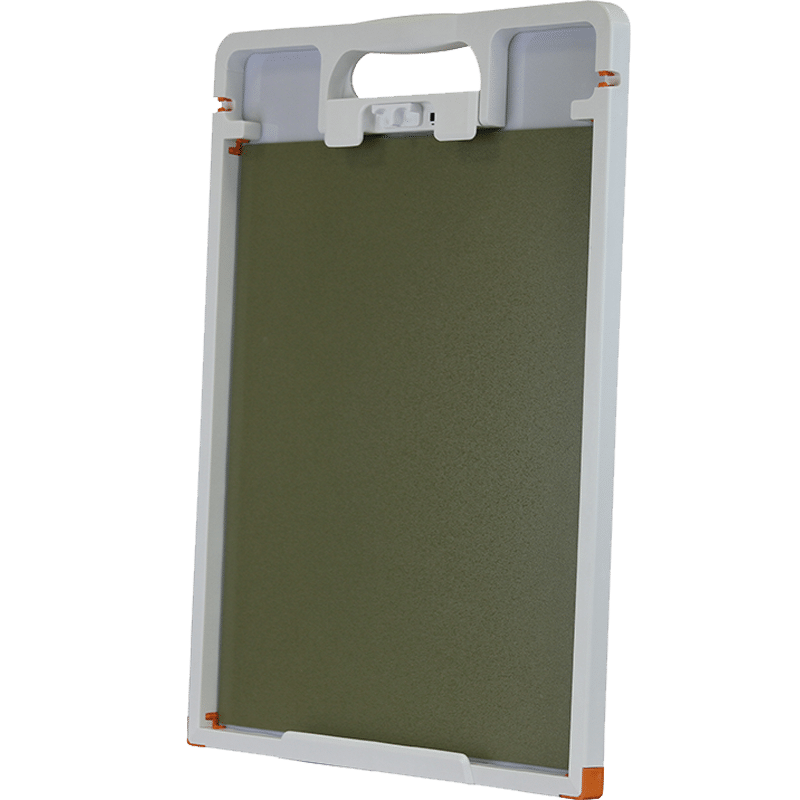

Vertical CarbonCase™ Grid Encasement
The Vertical CarbonCase™ Grid Encasement features three unique tube side support specifications, the CarbonMax, CarbonLite and the PolyCarbon. Available in a variety of sizes, including 24x30cm, 10x12in, 14x17in and 17x17in with a handle on the short axis. Like all Reina Imaging detector holders, the CarbonCase product line provides superior protection for both your DR panel and the grid resulting in the lowest lifetime cost of ownership available today. All grid encasements must be ordered with a grid. Please add the appropriate grid to your quote or contact Reina Imaging for assistance.
High volume order? Customization? Questions? Speak with a sales rep.
The CarbonCase™ family of accessories features three unique tube side support specifications for grid encasements and mobile DR panel holders. Available in a variety of sizes and configurations including 24x30cm, 10x12in, 14x17in and 17x17in with handles on the long or short axis.
The CarbonMax features an industry-leading 2.5mm carbon fiber tube side support that boasts a strength-to-weight ratio that makes it the pound-for-pound world champion in detector protection.
The CarbonLite showcases a performance-blended top plate including .5mm carbon fiber with a polycarbonate backing, yielding an affordable choice with remarkable protection.
The PolyCarbon provides a rugged, extremely durable polycarbonate top plate while offering the most affordable price in the market today.
Like all Reina Imaging detector holders, the CarbonCase product line provides superior protection for both your DR panel and the grid resulting in the lowest lifetime cost of ownership available today. Contact us to find your nearest Reina Imaging x-ray dealer today.
- Single handle on short axis to help carry and position the image receptor
- Virtually indestructible, shock absorbent, glassfilled polypropylene frame
- Curved corners and radiused edges don’t catch on bed sheets or patients
- Smooth, non-porous surfaces for effective cleaning and superior infection control
- Simple Twin-Lock™ dual locking design for easy panel application and removal
- Ergonomic handle to reduce fatigue and provide a sure grip
- Shock absorbent corner bumpers and inserts for additional drop protection and perfect fit
- Three configurations of tube side protection to meet your needs and budget
- Fits all ANSI sized wireless DR panels and most tethered DR panels
